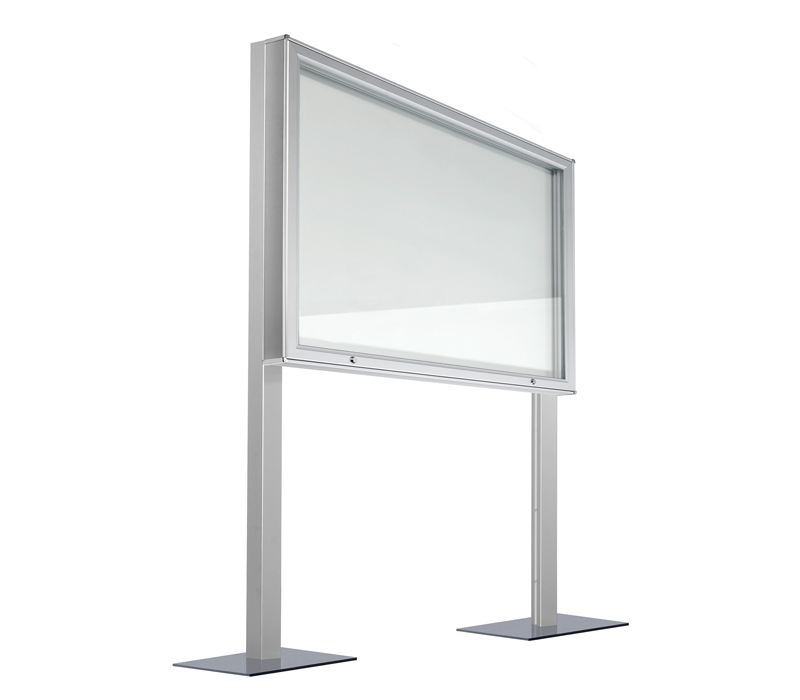

Free-standing showcase system for outside and inside
The
freestanding showcase system presents your information everywhere and with decorum. It can be set up in a hall indoors or in front of the building or cast in concrete outdoors. The supply of DIN A4 information sheets varies from 15 to 24 pieces depending on the size of the showcase. The notices are attached to the back wall using magnets and secured against storms and manipulation with a lockable hinged door.
The torsion-free
frame and the support posts are made of high-quality
silver anodized aluminum. The white coated
back wall is made of

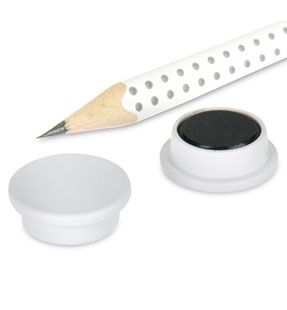

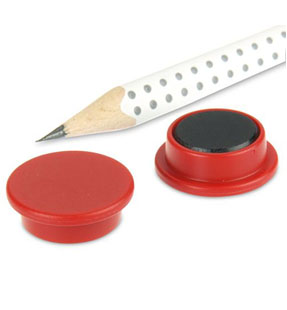

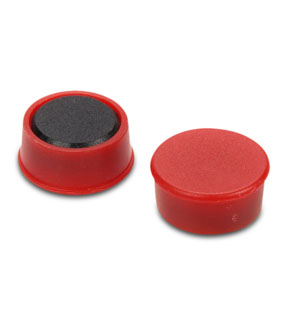

magnetic sheet steel, so your advertising, posters, announcements, etc. easily hung with magnets and replaced at any time. You can use your own holding magnets or order them from us if necessary.
The

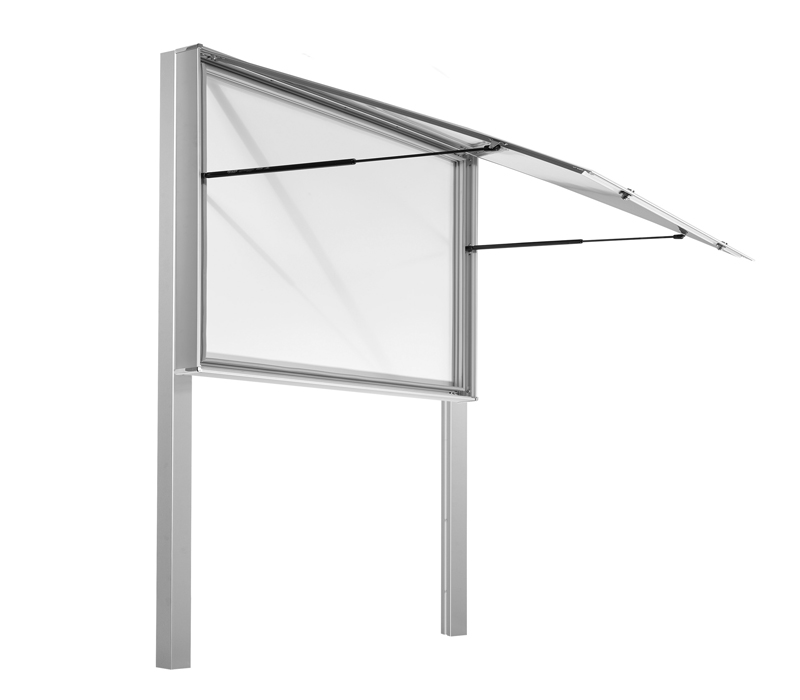

wing door consists of an aluminum frame and a pane of safety glass. The safety glass is 4 mm thick and has an ESG stamp DIN 1249. The door is
lockable and is equipped with 2 built-in locks that key alike. Since the wing door opens upwards, it has
side gas pressure springs. The gas struts hold the door in place when it is open so that the door does not fall down. They also enable smooth closing.
Fit the information display case with DIN A4 notices
The
outdoor showcase can be equipped with 15, 18, 21 or 24 DIN A4 notices. The number of information sheets depends on the size of the information display case. The table below shows the display case sizes with the maximum possible number of components:
| Size (H x W x D) | Equipment |
| 1055 x 1230 x 50 mm | 15 x DIN A4 |
| 1055 x 1452 x 50 mm | 18 x DIN A4 |
| 1050 x 1670 x 50 mm | 21 x DIN A4 |
| 1050 x 1890 x 67 mm | 24 x DIN A4 |
Assembly of the free-standing showcase
This information box is mounted using 2 aluminum support posts. The posts are square, with a side of 66 mm, their length depends on the mounting method. The 2500 mm long legs are suitable for
setting in concrete outdoors; here, at least
500 mm of the total length is intended as a
ground contact.
The support posts
for indoor and outdoor
installation are 2000 mm long and are supplied including
flange plates. The posts are equipped with holes for screwing the display case onto the front.
Please note that the product is delivered without mounting material. You should obtain the necessary assembly materials yourself.
Use as: showcase system with hinged doors, free-standing outdoor showcase, outdoor showcase, magnetic outdoor information box, presentation box with gas pressure springs, weatherproof poster display case, free-standing outdoor poster showcase.
