Draw strap for wall mounting
Locked in an emergency, otherwise unnoticeable! The wall mounting tieback has neither a post nor a base, but is mounted directly on the wall. The wall boundary system is optimal for fixed barriers where there is no frequent change of position. Mount the belt system once on the wall and then pull out the drawstring at any time if necessary and fix it in the wall clip on the opposite wall. As soon as there is no longer a need for the barrier, pull the drawstring back into the belt cassette and you're done.
With this wall barrier with drawstring you have the complete 4-way system at your disposal. This means that the exit of the belt strap can be designed variably through the 4-way belt cassette. It is also possible to combine several belt cassettes in all 4 directions and connect them to each other using drawstrings.Tie strap for wall mounting: construction
The wall mounting drawstring consists of a belt cassette with the drawstring, a wall bracket and a wall clip for holding the belt. Depending on your selection, the wall bracket has a high-gloss chrome finish or a matt silver finish. The belt cassette and the wall clip are made of ABS.

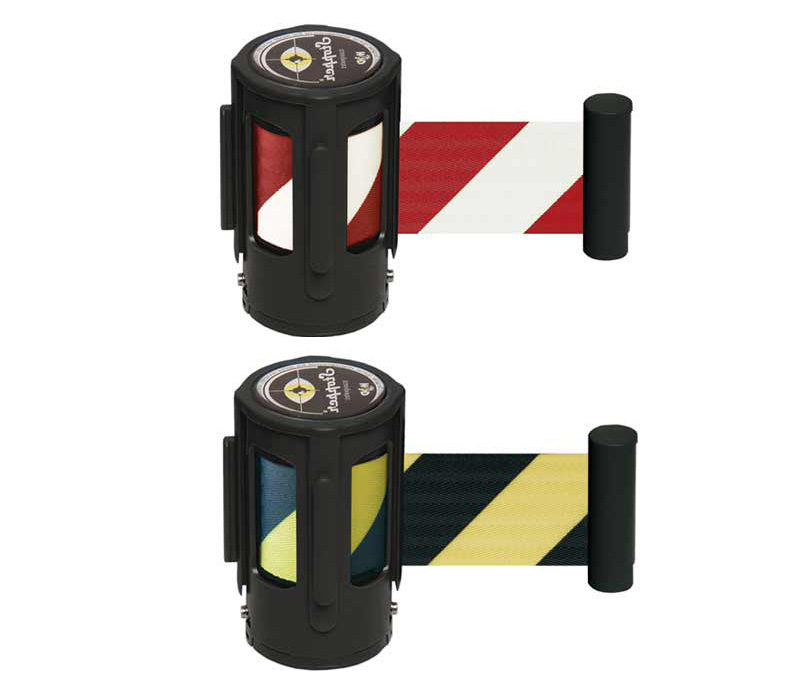

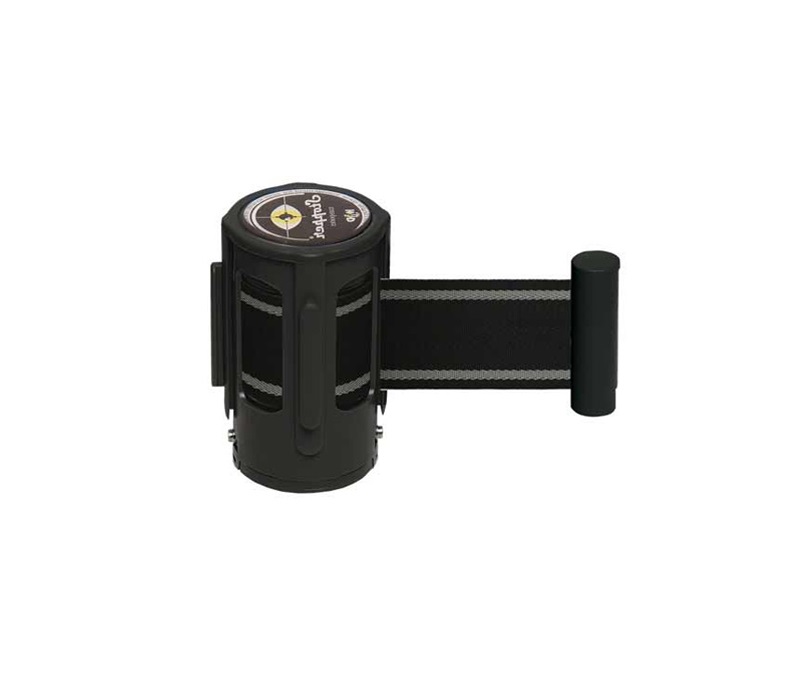

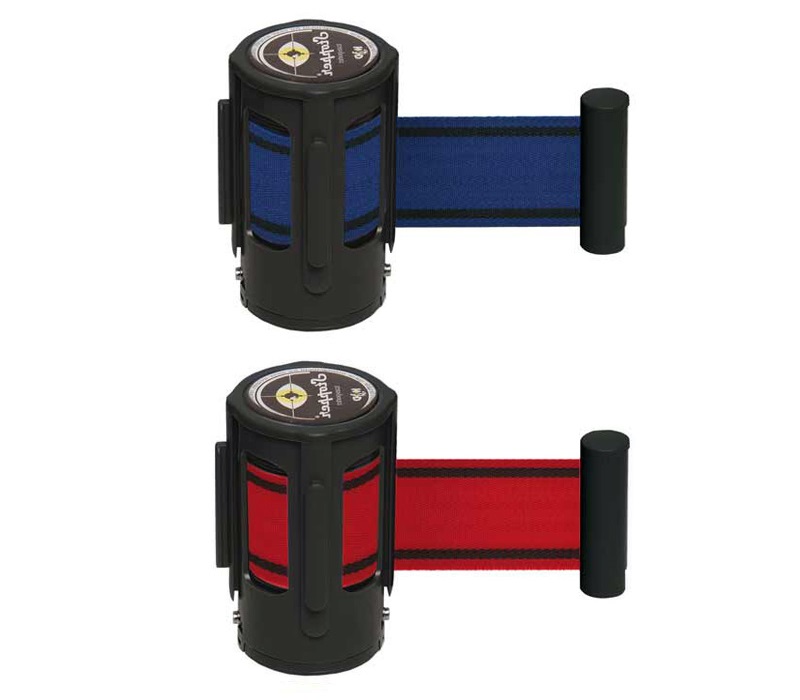

The draw strap for wall mounting can be ordered in different color combinations. The wall clip and the strap cassette are black, and the wall strap can be delivered in blue, black, red, red-white or yellow-black.Wall mounting of the drawstring
Attach the wall mount firmly to the wall. Simply insert the belt cassette into this wall mount. Mount the wall clip on the opposite wall. And you can then pull the wall strap out of the strap cassette and hang it on the wall clip.

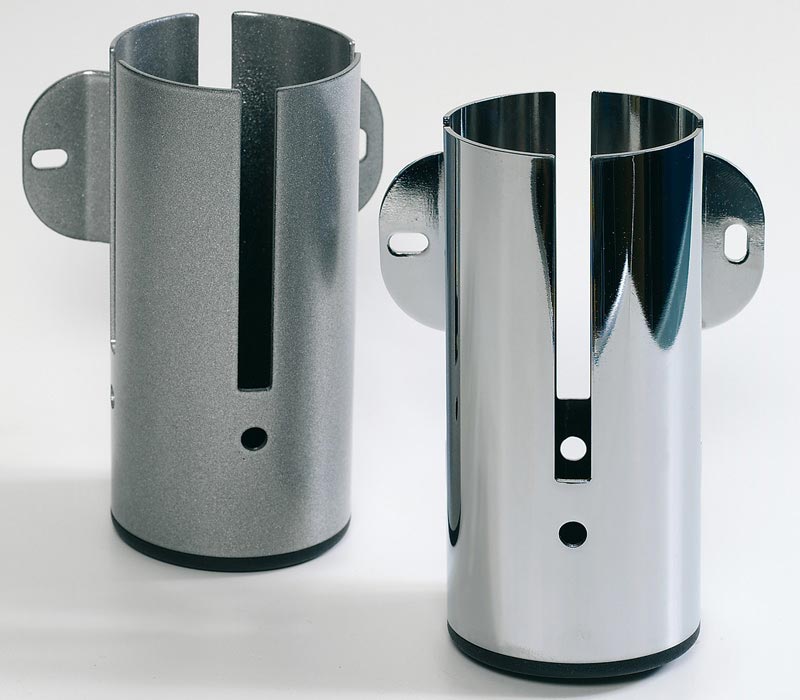

The wall bracket can be ordered in high-gloss chrome or with a matt silver finish. Wall clip is made of ABS and available in black. Suitable screws and dowels for wall mounting are included in the scope of delivery, so that you can immediately mount the tension strap on the wall.
If desired and there is enough space, the other belt end piece can be hung not on the wall clip, but on a free-standing belt barrier post. So you are well looked after: one end of the belt barrier is firmly fixed to the wall thanks to the fixed starting point. And the other belt end piece can be pulled out of the belt cassette at any time and hung on a freely positioned belt post. In some areas of application, this application can prove to be very effective. You can easily order the matching belt post in our online shop.
If you mount the strap wall bracket concealed, you can also use the 4th pull-out. For example, it is installed behind drywall or in furniture so that the drawstring with wall bracket is only visible when necessary. Draw strap wall mounting: use
Wall belt barrier system is often used as a safety barrier or people guidance system in narrow spaces: in corridors, corridors, narrow vestibules, in front of the elevator, etc.
Recommended use as: Drain tape wall mounting, wall belt barrier system, wall delimitation with pull tape, wall delimitation with pull tape, wall installation delimitation system, pull belt with wall cassette or with wall module.
